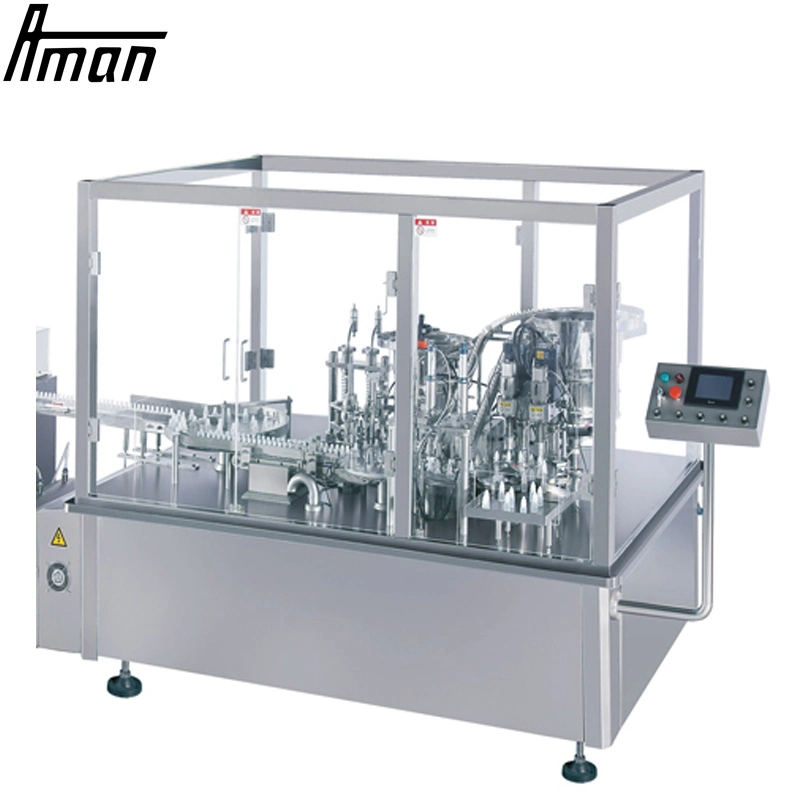

Hyaluronic Acid Automatic Filling and Capping Machine Vial Automatic Filling and Capping Machine

Main Features

This machine is suitable for the filling of 10-200ml, 50ml to 500ml, 500ml to 2000ml etc series of beaded bottles, plugs and screw cap operations, widely used in medicine, daily chemical and other industries. A wide range of adaptation, easy to adjust, such as adjustment specifications, just need to replace a set of turntable mold can be. With accurate positioning, no bottle scann, smooth transmission, protection of the cap, simple operation and so on.

The filling machine is filled with the British Spirax peristaltic pump. Mitsubishi servo motor drive, original pipeline filling, with high precision, easy adjustment characteristics. Needle using siphon needle, can solve the needle drop-off hanging fluid, pull up the filling, no droplet situation occurred.

The screw cap head uses constant torque, automatic slip ping device, will not grind the bottle cap, the bottle will not follow, will not damage the appearance of the bottle. With accurate positioning, no bottles not filling, smooth transmission, simple operation and so on. Tabletops, around the side board are imported 304/2B high-quality stainless steel, with the liquid contact part of 316L stainless steel, the whole machine in line with GMP requirements. The production line transmission is mechanical transmission, transmission is accurate, smooth, gas-free pollution and the various institutions without error and other phenomena. When working, the noise is low, the loss is low, the work is stable, the output is stable, especially suitable for batch production.




Parameters

NoNameData
1Filling capacity10ml to 100ml, customized
2Filling speed70-90bottles per min, 30 to 50bottles per min
3Filling heads2heads, 4heads, 6heads, 8heads as per customer requirements
4Filling accuracy+/-0.5%
5Power supply220V 1Phase or 380V 3Phase
6Power2.5KW
7Air supply

0.3~04kfg/cm2

8WeightAround 880kg


Configuration

Breaker: Schneider

Switching Power Supply: Schneider

AC Contactor: Schneider

Button: Schneider

Alarm Light: Schneider

PLC: Siemens

Touch Screen: Simens

Cylinder: Airtac

Servo Motor: Schneider

Water Seperator: Airtac

Electromagnetic Valve: Airtac

Visual Inspection: COGNEX

Frequency Converter: Schneider

Detection Photoelectric: SICK


Hyaluronic Acid Automatic Filling and Capping Machine Vial Automatic Filling and Capping Machine

Hyaluronic Acid Automatic Filling and Capping Machine Vial Automatic Filling and Capping Machine

Hyaluronic Acid Automatic Filling and Capping Machine Vial Automatic Filling and Capping Machine

Hyaluronic Acid Automatic Filling and Capping Machine Vial Automatic Filling and Capping Machine

Hyaluronic Acid Automatic Filling and Capping Machine Vial Automatic Filling and Capping Machine


   The series filling machine is a kind of  PLC controlled high-tech filling machine with photoelectric sensing and pneumatic actuating researched and developed by our company.

   It can be suitable for water injection,fluids,detergent products of different viscosity.

   Widely used in  food,medicine,grease,pesticide,chemical and cosmetic industries.

   The machine can be coveniently maintained. It can realize accurate metering and make sure no filling is made in case of no bottle or bottle shortage.

    It is designed with submersible filling function,featured by accurate measurement and no bubble and dropping during the filling.

♦   Adopts electric components of world-famous brands. The main power cylinder adopts FESTO Germany dual-action cylinder and magnetic switch, Omron photoelectric and Germany SIEMENS PLC touch screen are equipped to ensure its excellent quality and stable performance.
