Full Automatic Pure Mineral Water Bottle Filling Machine
*We supply complete solution for the water filling plant ,including Water treatment system / Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system
Technical parameter:
Containers and specifications | |||||||
Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production Line | PH≥4.6drinking water | ||||||
material | shape | Filling volume(ml) | Filling level(mm) | Neck type | |||
PET Bottle | Square or Round Bottle | 100-2000ml | Distance from bottle neck According request | As request | |||
Adjustable specifications of the bottle type | Middle Mould Base: Bottle diameter ≤105mm Bottle Height≤335mm | ||||||
Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added. | |||||||
Container Label & Control Mode | Packaging system | Palletizing system | |||||
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic | Packing system | Min, Spec. | Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer | ||||
Manual Film shrinker Wrap Around packer Robert Packing Machine | 1*2 2*3 3*4 4*6 3*5 | ||||||
User Ambient Conditions: | Temperature:10~40ºC;Humidity:No dew | ||||||
User Electrical Supply Specification | Voltage:380V±5%, 3phase; Frequency:50HZ±1% |
Introduction:
CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottlewash, fill and seal are composed in one body of the machine. The whole process is automatic.
Technical Parameter:
Project Name: | ||||||
Model | CGN8-8-3 | CGN14-12-5 | CGN18-18-6 | CGN24-24-8 | CGN24-24-8 | CGN40-40-12 |
Capacity | 2000 | 6000-8000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000 |
Bottle shapes | PET circular or square | |||||
Bottle diameter(mm) | Dia50-Dia115mm | |||||
Bottle height (mm) | 160-320mm | |||||
Compressor air pressure(Mpa) | 0.3-0.7Mpa | |||||
Washing meidum | Aseptic water | |||||
Rinsing pressure(Mpa) | >0.06Mpa <0.2Mpa | |||||
Application | drink water bottling production line | |||||
Total power (KW) | 4.4 | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 |
Overall dimensions(L*W) | 2.3*1.9 | 2.5*1.9 | 2.8*2.15 | 3.1*2.5 | 3.8*2.8 | 4.5*3.3 |
Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m |
Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | 8000kg |

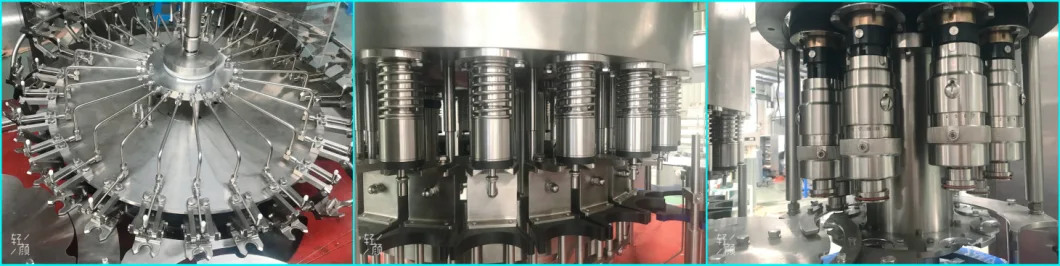

Washing headsThe rotary disk is fully made of SUS304 stainless steel. | |
Filling headsThe washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods. | |
Capping headsThe capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiao Tong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design. |
We provide the Complete plant turnkey project for pure water production line including:
1.Water Treatment System, (Water Filtration)
2.Bottle Blowing Machine,(Making plastic bottles)
3.Air Conveyor,(Transport empty bottles)
4.Water Filling Machine ,(Filling water into bottles)
5.Cap elevator, (Transport cap)
6.Blow dryer, (Blow dry water)
7.Flat Convey, (Transport bottle)
8.Code Sprayer,(Printing the date on the bottle water)
9.Labeling Machine ,(Labeling in bottled water)
10.Bottle Shrink Wrapping Machine, (package the bottle water)
11.injection molding machines,(for pet preform)
CGN8-8-3 Bottle Water Washing Filling Capping Machine,1,000-2,000 bottles per hour.
CGN14-12-4 Bottle Water Washing Filling Capping Machine, 2,000-3,000 bottles per hour.
CGN18-18-6 Bottle Water Washing Filling Capping Machine,6,000-7,000 bottles per hour.
CGN24-24-8 Bottle Water Washing Filling Capping Machine,8,000-9,000 bottles per hour.
CGN32-32-10 Bottle Water Washing Filling Capping Machine,10,000-12,000 bottles per hour.
CGN40-40-12 Bottle Water Washing Filling Capping Machine,12,000-15,000 bottles per hour.
It is suitable for producing PET plastic bottles from: 250-2000ml;
Both round bottle and square bottle are available.
Material: PET Preform, Cap, Raw Water, PVC Label, Roll PE film
Bottling Line for Natural Mineral Drinking Water, Pure Water, Spring Water.
Flow chart :
Automatic bottle blowing machine --> Air conveyor system-->Washing,filling ,capping 3in1 machine-->Conveyor system-->Automatic sleeve labeling machine-->Automatic film shrink packing machine/Carton packing machine
Main Features
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
More models
Technical parameter: Water bottling machine | ||||||
Model | CGN8-8-3 | CGN14-12-4 | CGN18-18-6 | CGN24-24-6 | CGN32-32-8 | CGN40-40-10 |
Capacity(for 500ml) | 2000 | 3000-4000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000 |
Suitable bottle shapes | PET circular or square | |||||
Bottle diameter(mm) | Dia50-Dia115mm | |||||
Bottle height (mm) | 160-320mm | |||||
Compressor air | 0.3-0.7MPa | |||||
Washing meidium | Aseptic water | |||||
Rinsing pressure | >0.06MPa <0.2MPa | |||||
Application | Water bottling machine | |||||
Total power (KW) | 4.4kw | 4.4kw | 4.4kw | 5.2kw | 6.2kw | 7.8kw |
Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m |
Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m |
Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | 8000kg |
Auxiliary machines
RO water treatment systemWe adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water. | |
Blow molding system1. Excellent Mechanical Strength, impact-resisting, and non-craking. | |
Automatic labeling machine1. Shrink Labeling Machine For Sleeve adpots PLC programmable controller,imported servo motor,servo driver, frequency converter and transducer. | |
PE film packaging machineAutomatic PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine. |
To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.
HY-Filling

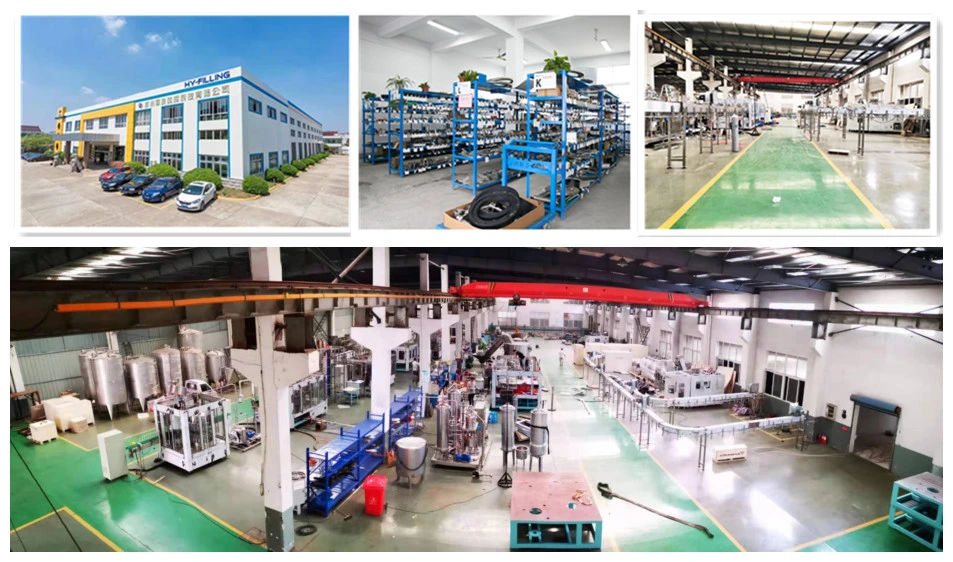

<1> Standardized workshop of total 30,000 square m<1> Standardized workshop of total 30,000 square meters.<2> With a more than 30 professionals team to design and develop, is a key professional enterprise, which integrates development, research, design, manufacture, technology service and marketing.
<3> HY-Filling follows ISO9001:2000, CE Certificate , SGS , COC , TUV international quality management system. <4>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability. <5>Professional installation team who are seasoned technician, Provide equipment quality installation services.
